QOU335 - Square D 35 Amp 3 Pole 240 Volt Bolt-On Molded Case Circuit Breaker

0 reviews Write a review

Brand:	Schneider Electric
Product Code:	QOU335

Product available in stock : 1000

$159.22

Qty

Free Shipping Policy

FREE Shipping on orders over $49.

3bbreaker.com offers one to five day delivery. The variation depends on the warehouse location for the product(s).

1-Year Warranty

All products carry a 1-year warranty from 3bbreaker.com. All of our breakers are authentic and factory new.

Returns are Easy

You may return items within 30 days of delivery for a refund.

Next Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, 3bbreaker.com may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Description
Reviews (0)

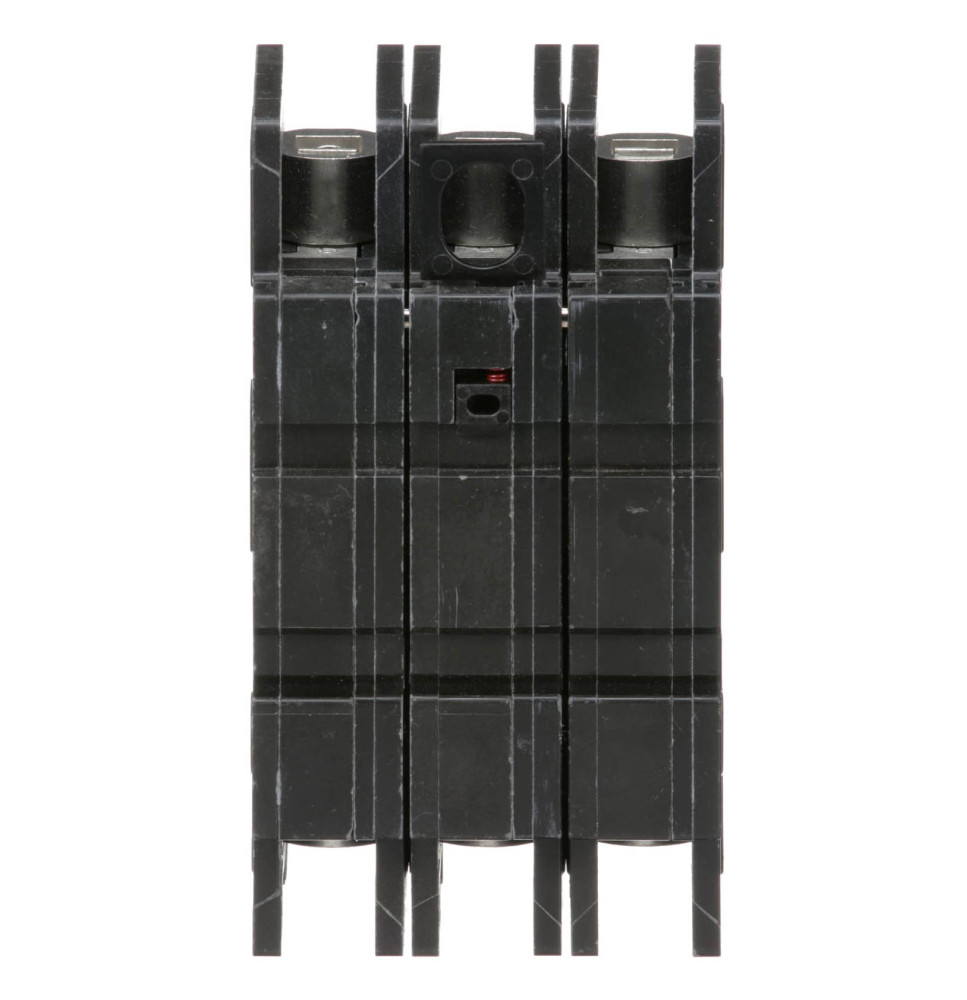

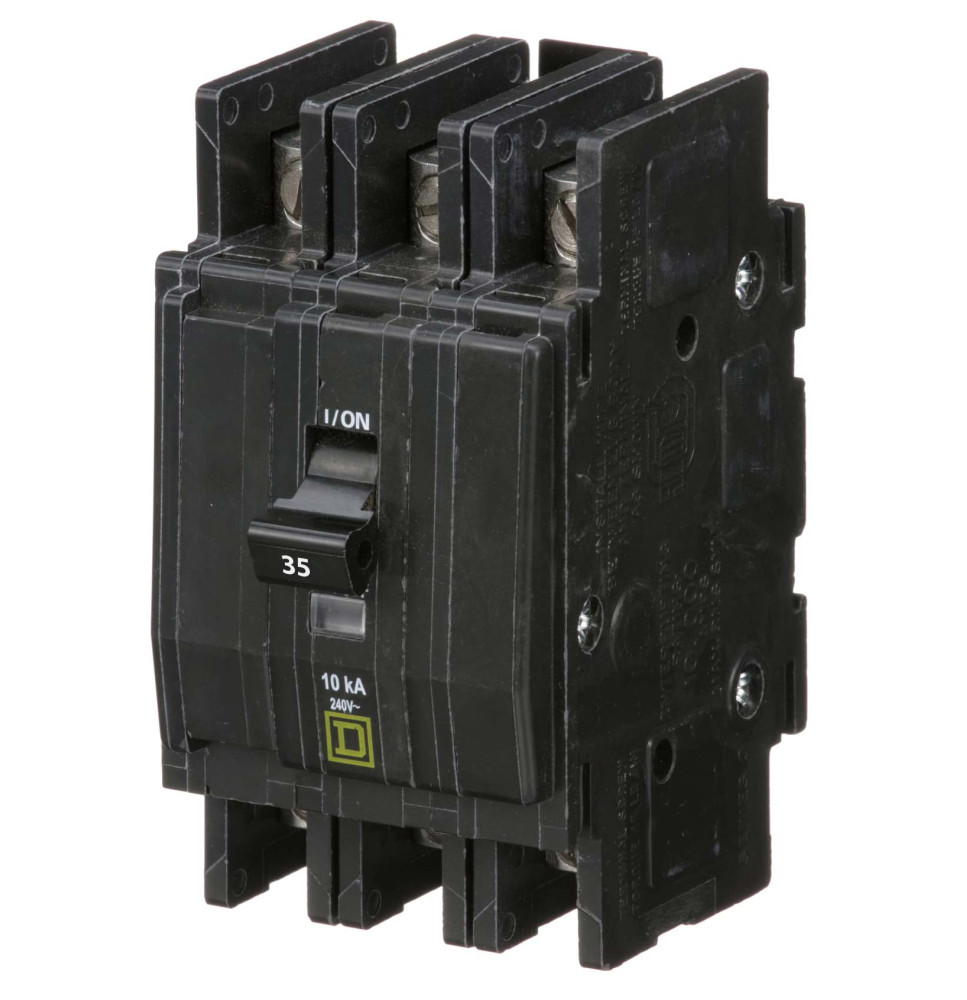

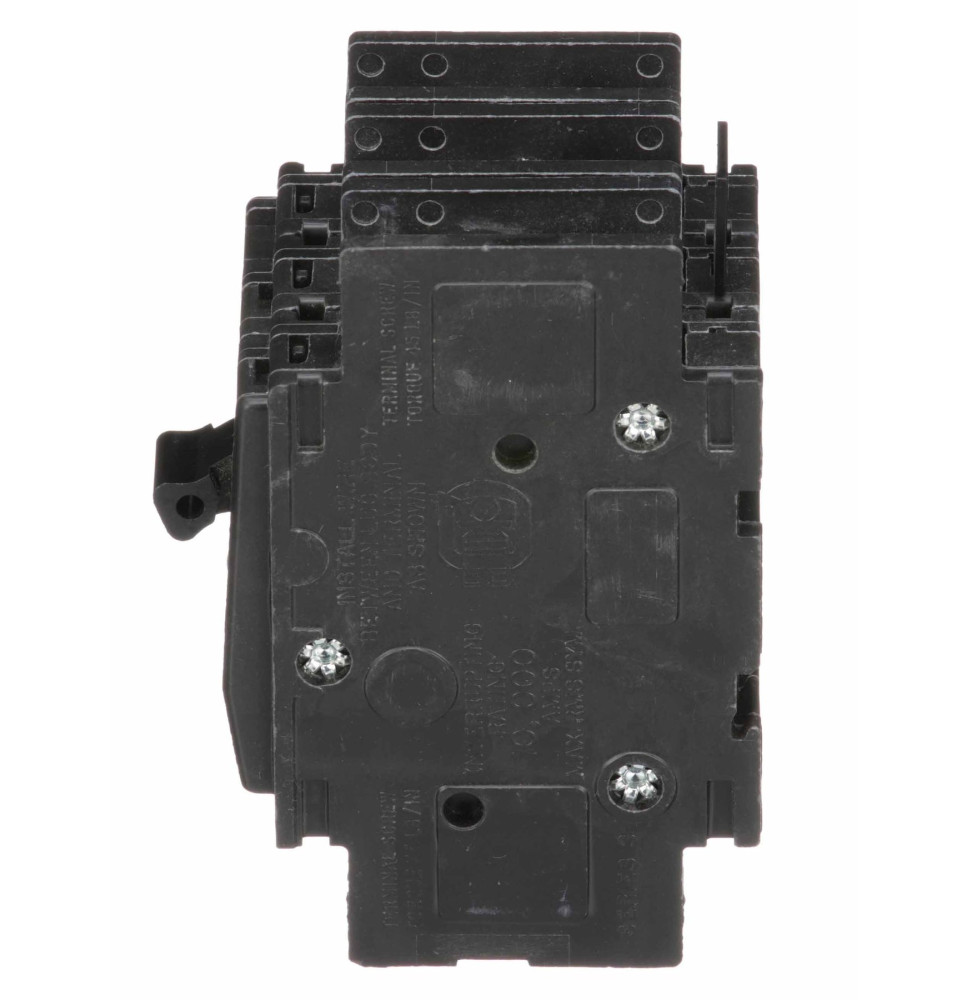

QOU335 - Square D Bolt-On Molded Case Circuit Breaker

Square D QOU series three pole 35 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 240V complete with (LI) long-time and instantaneous trip functions.

Specifications:

Product or component type: Miniature circuit-breaker
Range of product: QOU
Circuit breaker type: Standard
Circuit breaker application: HACR and Switching Duty rated
Line Rated Current: 35 A
Number of Poles: 3P
Interrupt Rating: 10 kA at: 120/240 V AC, 5 kA at: 48 V DC, 10 kA at: 120 V AC, 10 kA at: 240 V AC
Electrical connection: Slotted box lugs, line side, Slotted box lugs, load side
System Voltage: 120 V AC, 120/240 V AC, 240 V AC, 48 V AC
Mounting mode: Unit mount
AWG gauge: AWG 14...AWG 2 (aluminium/copper)
Height: 4.05 in
Depth: 2.95 in
Width: 2.25 in
Product certifications: CSA, IEC, UL listed
Authentic Square D Product
Dimensions (H x W x L): 4.05" x 2.25" x 2.95"
3 phase

Alt model: q0u335
