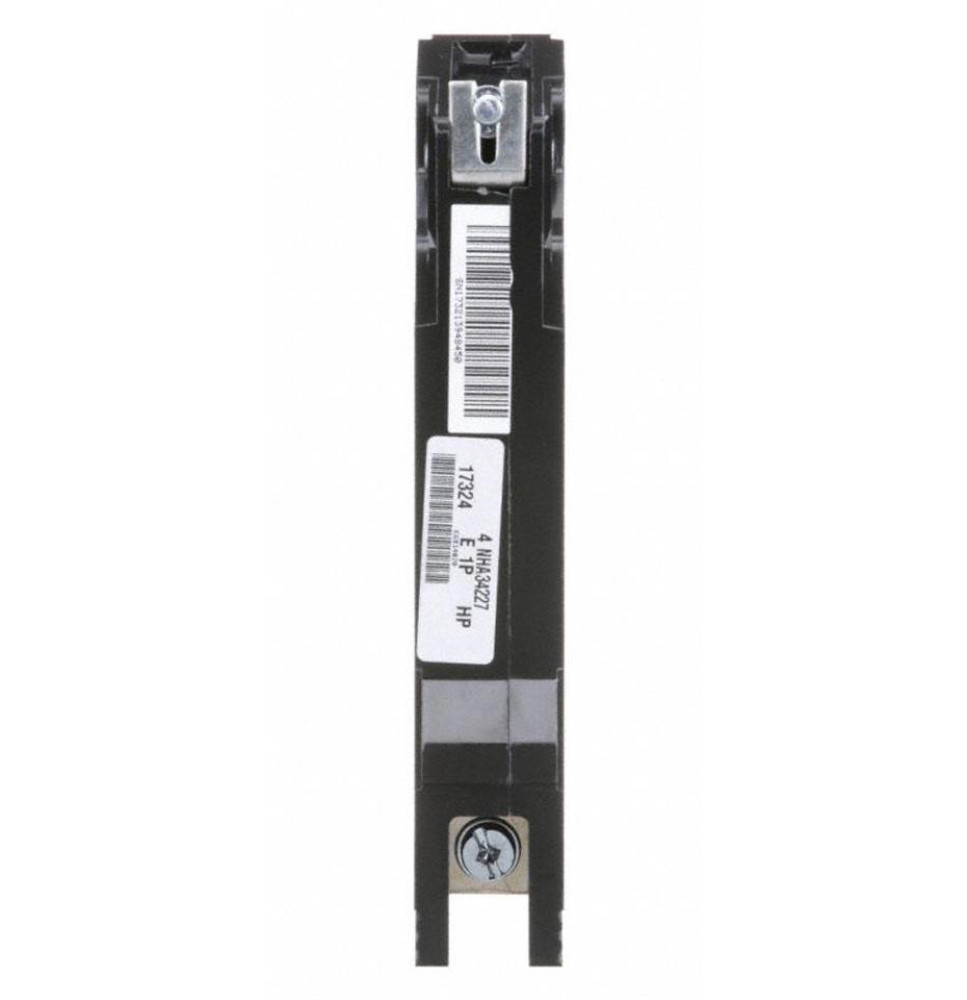

EJB14030 - Square D Bolt-On Circuit Breaker

Schneider Electric / Square D Bolt-On Circuit Breaker Its Compact And Easy to Install Single pole thermal-magnetic circuit breaker has a current rating of 30 amps and voltage rating of 120/240/277 Vac it has an interrupt current rating of 100 Kiloampere at 120 Vac it accommodates aluminum/copper wire of size 14 to 6 Awg circuit breaker is Ul listed and Csa certified.

Specifications:

Range of product: 125 A Frame EDB-EGB-EJB
Product or component type: Miniature circuit-breaker
Device short name: EJB
Module type: E-Frame
Trip unit rating: 875 A
Line Rated Current: 30 A
System Voltage: 277 V AC
AWG gauge: AWG 14...AWG 6 copper, AWG 12...AWG 6 aluminium
Breaking capacity: 65 kA 277 V AC, 100 kA 120 V AC, 65 kA 120/240 V AC, 65 kA 240 V AC
Circuit breaker application: HACR rated, HID rated, Switching Duty rated
Depth: 4.05 in
Electrical connection: Lugs aluminium
Height: 5.66 in
Holding current: 270 A
Local signalling: Trip indicator
Mounting mode: Bolt-on
Number of poles: 1
Number of spaces: 1
Number of spaces required: 1
Product destination: Panelboard NF
Product weight: 2 lb(US)
Protection type: Overload, Short-circuit
Width: 0.98 in
Trip unit technology: Thermal-magnetic
Breaking capacity code: J
Tightening torque: 3.4 N.m for 2.5...16 mm² (AWG 14...AWG 6)
Product certifications: cULus
Ambient air temperature for operation: 104 Degree F (40 Degree C)
Authentic Square D Product
Dimensions (H x W x L): 5.66" x 0.98" x 4.05"
