QOB345 - Square D 45 Amp 3 Pole Bolt-On Circuit Breaker

0 reviews Write a review

Brand:	Schneider Electric
Product Code:	qob345

Product available in stock : 1000

$170.10

Qty

Free Shipping Policy

FREE Shipping on orders over $49.

3bbreaker.com offers one to five day delivery. The variation depends on the warehouse location for the product(s).

1-Year Warranty

All products carry a 1-year warranty from 3bbreaker.com. All of our breakers are authentic and factory new.

Returns are Easy

You may return items within 30 days of delivery for a refund.

Next Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, 3bbreaker.com may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Description
Reviews (0)

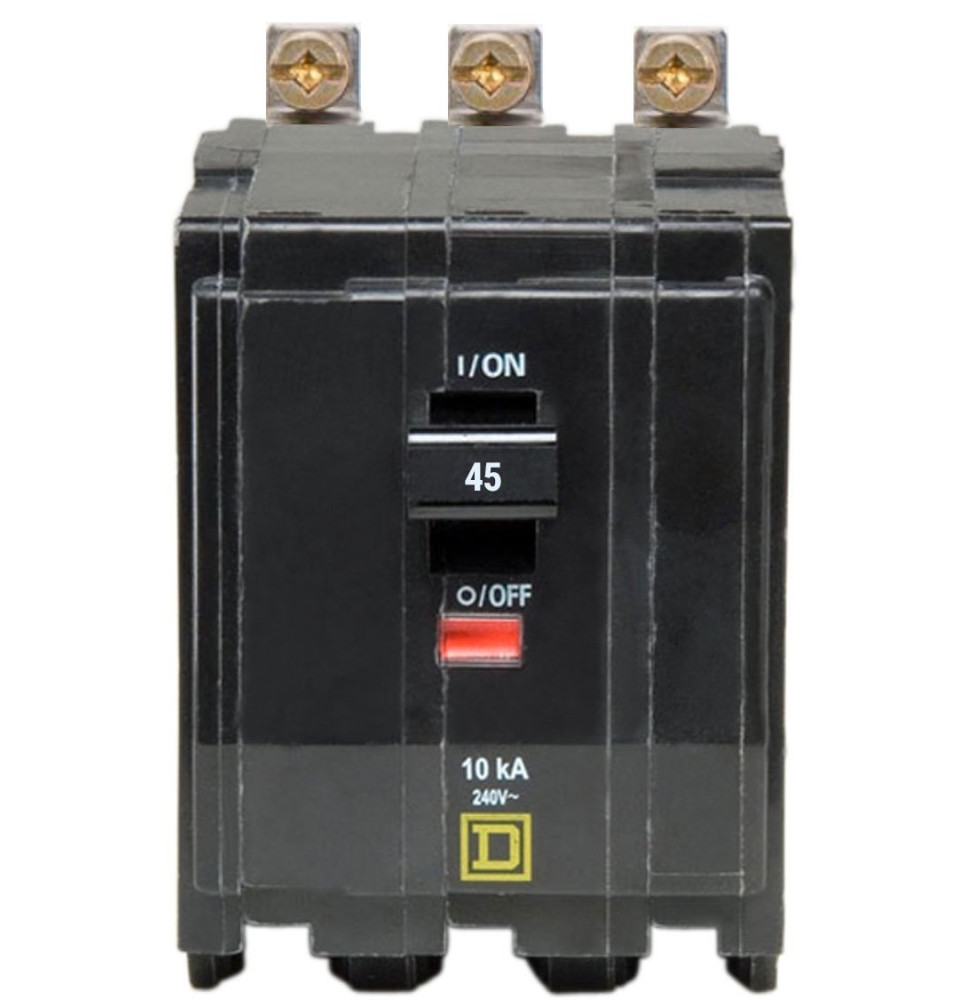

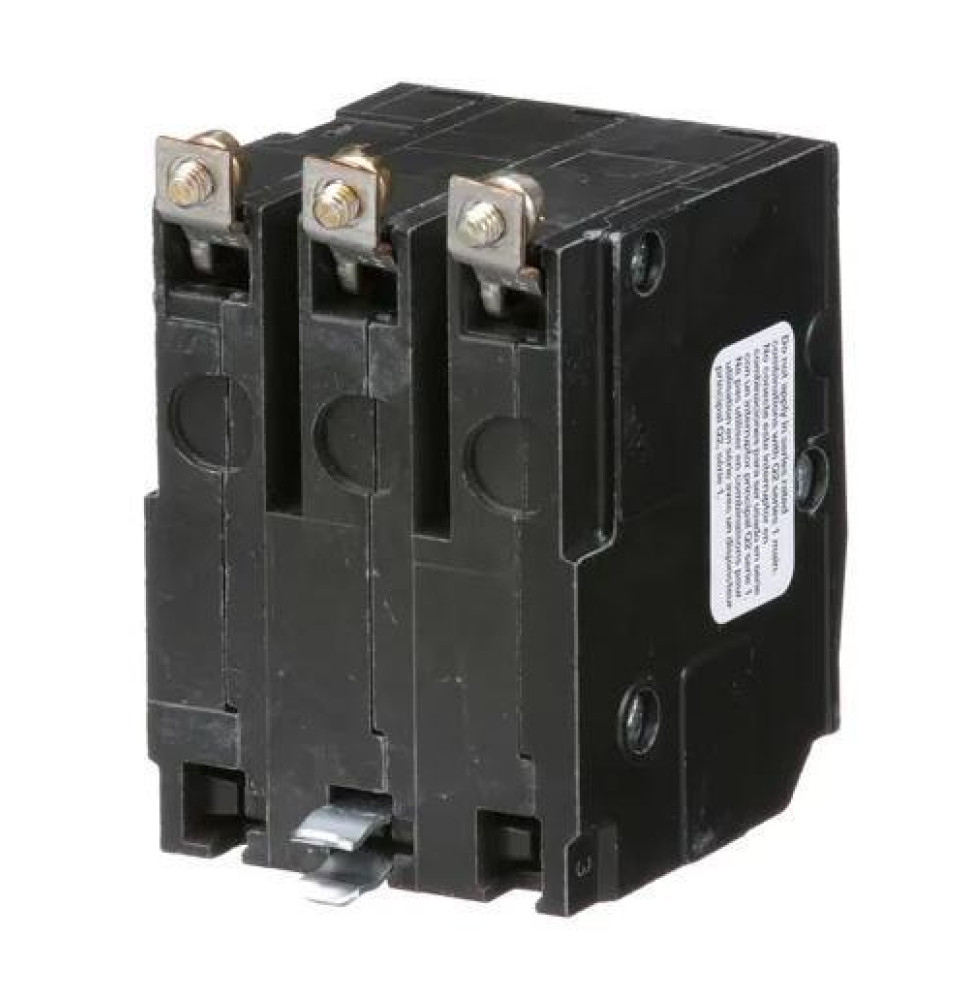

QOB345 - Square D Bolt-On 45 Amp Breaker

Square D QOB series three pole 45 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 240V (LI) long-time and instantaneous trip functions suitable for QOB Series load centers.

Specifications:

Product: Miniature circuit-breaker
Range: QO
Line Rated Current: 45 A
Mounting Type: Bolt-on
Number of Poles: 3P
Circuit Breaker Type: Standard
Ratings: HACR rated
Electrical Connection: Box lugs
Inturrupt Rating: 5 kA at: 48 V DC, 10 kA at,120/240 V AC 0/60 Hz, 10 kA at, 240 V AC 50/60 Hz, 10 kA at: 120 V AC 50/60 Hz
Number of Panel Spaces: 3
Wire Size: AWG 8...AWG 2 (copper or aluminium)
Height: 3.12 in
Depth: 2.91 in
Width: 2.25 in
Authentic Schneider Electric / Square D Product
Voltage Rating: 240 Volt
Dimensions (H x W x L): 3.12" x 2.25" x 2.91"
3 phase

Alt model: q0b345
